Product Image RADIUM Competition Catch Tank

RADIUM Competition Catch Tank

$450.00


The Radium Competition Catch Tank was created to provide motorsports participants with a high quality product that meets the common 1QT minimum capacity requirements dictated by many organizing bodies including SCCA and FormulaDrift. It is CNC machined from solid 6061-T6 aluminum to provide the ultimate in function and finish. All of the catch tank components are anodized to provide a long lasting attractive finish.

Like all Radium catch cans, the Competition Catch Tank has an easily accessed dip stick to quickly check fluid level. A threaded -4AN O-ring port is also included on the bottom for the ability to plumb a quick pet cock drain valve. The included mounting bracket allows full 360 degree rotation. Stainless steel filtration media provides surface area for oil vapor to condense and drop out of suspension.  A large chamber for the media will not create a flow restriction. The media can be removed for cleaning.

By adding the optional extension piece, the catch tank can be configured in short or tall form. The short version has a fluid capacity of 0.86QT (0.815L) and the tall version has a capacity of 1QT (0.946L).

Dimensions and Specifications:

2.6 lb long version / 2.25 lb short version

- 8.9” total height long version / 6.1” total height short version

- 3.45” outside diameter

- 1 quart (0.946 L) internal volume long version

- 0.86 quart (0.815 L) internal volume short version

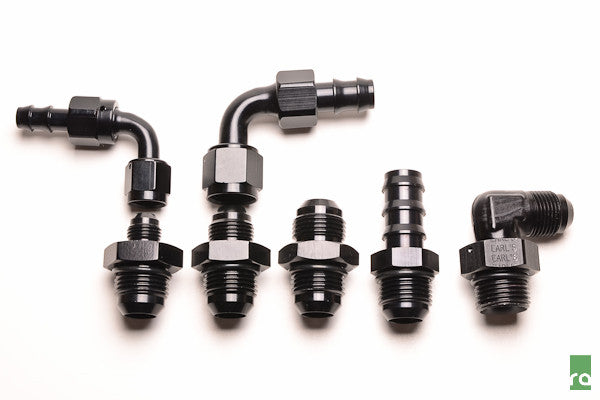

 Optional fittings can be added using the drop down menus.
Use this guide to select the correct hose barb fitting:
